🛠️ Fixed Hydraulic Shock Absorber – Model AC-14-12-H
The AC-14-12-H is a compact, high-hardness fixed hydraulic shock absorber designed for emergency damping in industrial automation and defense-grade systems. Featuring a Black Arkor-treated body, hardened stainless steel piston rod, and high-speed damping characteristics, it is a fast-moving product trusted for critical impact protection.
⚙️ Technical Specifications
ParameterValue
Stroke Length
12 mm
Max. Energy per Cycle
15 Nm
Max. Energy per Minute
600 Nm/min
Effective Mass Range
Up to 100 kg
Max. Collision Velocity
3.5 m/s
Thread Size
M14 × 1.5
Body Material
Mild steel with Black Arkor finish
Rod Material
Hardened stainless steel
Return Mechanism
Internal spring
Operating Temperature
–5°C to +70°C
Service Life
Up to 800,000 cycles
Stock Status
Best seller – available ex-stock
✅ Features
Fixed damping with high-speed response for emergency stop applications
Black Arkor finish for superior corrosion resistance and industrial-grade durability
High-hardness construction for repeated impact absorption
Compact design for space-constrained installations
RoHS compliant and suitable for automation, defense, and surface transport systems
🛠️ Fixed Hydraulic Shock Absorber – Model AC-14-12-M
The AC-14-12-M is a compact, precision-engineered fixed hydraulic shock absorber designed for light-duty industrial applications, including food processing machinery. With a Black Arkor-treated body for corrosion resistance and an optional stainless steel version for hygienic environments, it offers reliable energy absorption and long service life.
⚙️ Technical Specifications
ParameterValue
Stroke Length
12 mm
Max. Energy per Cycle
15 Nm
Thread Size
M14 × 1.5
Body Material
Mild steel with Black Arkor finish (default) or Stainless Steel (optional)
Rod Material
Hardened stainless steel
Return Mechanism
Internal spring
Operating Temperature
–5°C to +70°C
Service Life
Up to 1 million cycles
Stock Status
Best seller – available ex-stock
🧩 Rod-End Options
No Cap – for ultra-compact installations
Metallic Cap – for rugged impact zones
Metallic + PU Cap – for noise reduction and soft rebound
Side Load Adapter – available for misaligned impact angles
✅ Features
Fixed damping with internal multi-orifice design
Black Arkor finish for enhanced corrosion resistance in industrial settings
Stainless steel body option for food-grade and hygienic environments
Rod-end modularity for application-specific customization
Compact and easy to install in automation setups
RoHS compliant and suitable for cleanroom or food processing zones
🛠️ Fixed Hydraulic Shock Absorber – Model AC-16 07-A
The AC-167-A is a compact, high-precision fixed hydraulic shock absorber engineered for pad printing systems and light-duty automation. Designed for consistent energy absorption and minimal rebound, it features a Black Arkor-treated body, hardened stainless steel piston rod, and multiple rod-end configurations to suit diverse mounting needs.
⚙️ Technical Specifications
ParameterValue
Stroke Length
20 mm
Max. Energy per Cycle
25 Nm
Max. Energy per Hour
45,000 Nm/h
Effective Mass Range
3 – 25 kg
Thread Size
M16 × 1.5
Body Material
Hardened steel with Black Arkor finish
Rod Material
Hardened stainless steel
Return Mechanism
Internal spring
Operating Temperature
–5°C to +70°C
Service Life
Up to 1 million cycles
Stock Status
Best seller – available ex-stock
🧩 Rod-End Options
No Cap – for ultra-compact installations
Metallic Cap – for rugged impact zones
Metallic + PU Cap – for noise reduction and soft rebound
Side Load Adapter – available for misaligned impact angles
✅ Features
Fixed damping with multi-orifice internal design
Black Arkor finish for enhanced corrosion resistance
Rod-end modularity for application-specific customization
Compact and easy to install in pad printing and automation setups
RoHS compliant and suitable for cleanroom or precision environments
The AC2020M Industrial Shock Absorber is a compact, self-compensating hydraulic damper designed for medium-duty applications. It is engineered to provide effective energy absorption and deceleration control in various industrial machinery setups.

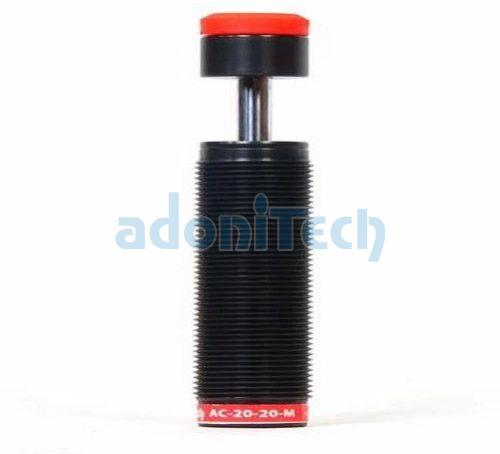

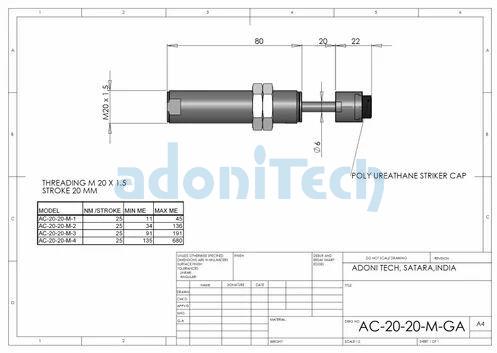

🛠️ Fixed Hydraulic Shock Absorber – Model AC-20-20-M
The AC-20-20-M is a compact, high-performance fixed hydraulic shock absorber designed for medium-duty industrial applications. Engineered with a Black Arkor-treated body, hardened stainless steel piston rod, and multiple rod-end cap options, it offers reliable energy absorption and long service life in demanding environments.
⚙️ Technical Specifications
ParameterValue
Stroke Length
20 mm
Max. Energy per Cycle
40 Nm
Max. Energy per Hour
60,000 Nm/h
Effective Mass Range
Up to 700 kg
Thread Size
M20 × 1.5
Body Material
Mild steel with Black Arkor finish
Rod Material
Hardened stainless steel (Grade 316)
Operating Temperature
–5°C to +70°C
Service Life
Up to 800,000 cycles
Stock Status
Available ex-stock at best price
🧩 Rod-End Options
No Cap – for compact installations
Metallic Cap – for rugged impact zones
Metallic + PU Cap – for noise reduction and soft rebound
Side Load Adapter – available for misaligned impact angles
✅ Features
Fixed damping with internal multi-orifice design
Black Arkor finish for enhanced corrosion resistance
Rod-end modularity for application-specific customization
Compact and easy to install in automation setups
RoHS compliant and suitable for industrial and defense-grade systems

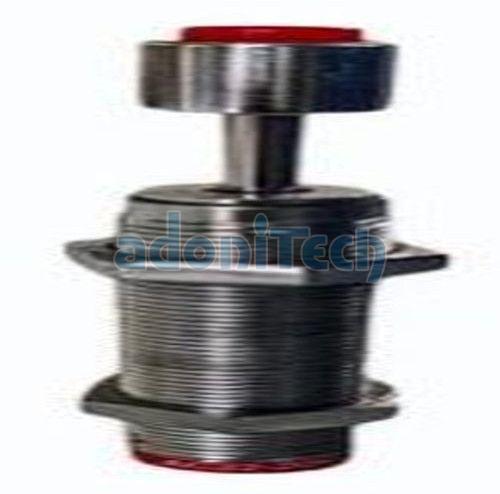

The AC2220M Industrial Shock Absorber is a compact, adjustable hydraulic damper designed for medium-duty industrial applications. It is engineered to provide precise energy absorption and deceleration control in various machinery setups.
Key Specifications
Thread Size: M22 x 1.5
Stroke Length: 20 mm
Energy Absorption per Cycle: 50 Nm
Energy Absorption per Hour: 60,000 Nm/h
Surface Finish: Black nitrided anti-corrosive coating
