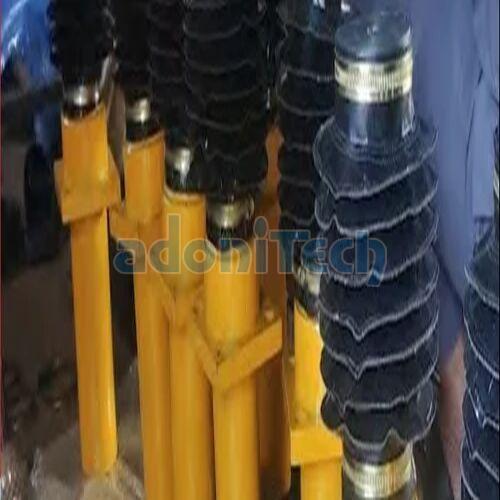

AKHG6575 EOT Crane Hydraulic Shock Absorbers



🛠️ Hydraulic Buffer – Model AKHG65-75

The AKHG65-75 hydraulic buffer from   is a high-performance energy absorption device engineered for demanding industrial applications. It is part of the AKHG Series, known for its robust design, self-adjusting damping, and compliance with global safety standards.

🔧 Technical Specifications

• Stroke Length: 75 mm
• Maximum Energy per Cycle: 6 kJ
• Maximum Buffer Force: 100 kN
• Operating Temperature:
  • Standard: –10°C to +80°C
  • Special: –40°C to +120°C
• Return Mechanism: Nitrogen gas
• Filling Medium: Oil + Nitrogen gas
• Piston Rod: Hard chrome plated (≥25 µm)
• Body Coating: Epoxy paint
• Mounting Options: Rear flange, front flange, clevis, or custom configurations

🏗️ Applications

Ideal for:

• Container cranes
• Overhead and stacker cranes
• Transfer cars
• Railway systems
• Amusement rides
• Steel plant safety systems

✅ Features

• Self-adjusting damping for consistent performance
• Multiple orifice design tailored to application needs
• Compact and rugged construction for harsh environments
• Global compliance: OSHA, AISE, CMMA, DIN, FEM standards
