| Business Type | Manufacturer, Exporter, Supplier |
| Application | Industrial |
| Material | Mild Steel |
| Color | Black |
| Click to view more | |
Product Details
Brand Name
ADONI TECH
Spring Material
EN47
Shape
Round
Condition
New
Feature
FISED HARNESS , SOFT CONTACT ALSO AVAILABLE ON REQUEST
Stroke
20mm
Power
25 Nm
Stroke Length
M 20X1.5
Product Code
AC2020M
Payment Terms
D/P, T/T

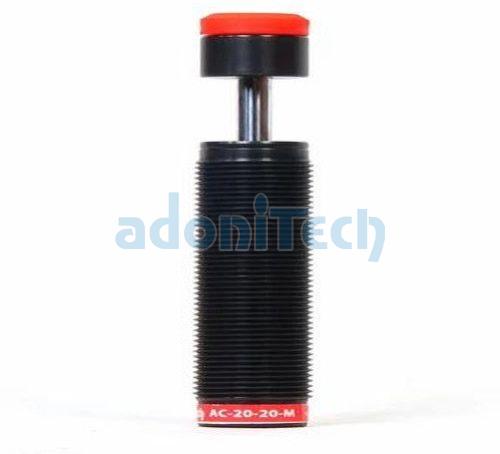

🛠️ Fixed Hydraulic Shock Absorber – Model AC-20-20-M
The AC-20-20-M is a compact, high-performance fixed hydraulic shock absorber designed for medium-duty industrial applications. Engineered with a Black Arkor-treated body, hardened stainless steel piston rod, and multiple rod-end cap options, it offers reliable energy absorption and long service life in demanding environments.
⚙️ Technical Specifications| Stroke Length | 20 mm |
| Max. Energy per Cycle | 40 Nm |
| Max. Energy per Hour | 60,000 Nm/h |
| Effective Mass Range | Up to 700 kg |
| Thread Size | M20 × 1.5 |
| Body Material | Mild steel with Black Arkor finish |
| Rod Material | Hardened stainless steel (Grade 316) |
| Operating Temperature | –5°C to +70°C |
| Service Life | Up to 800,000 cycles |
| Stock Status | Available ex-stock at best price |
- No Cap – for compact installations
- Metallic Cap – for rugged impact zones
- Metallic + PU Cap – for noise reduction and soft rebound
- Side Load Adapter – available for misaligned impact angles
- Fixed damping with internal multi-orifice design
- Black Arkor finish for enhanced corrosion resistance
- Rod-end modularity for application-specific customization
- Compact and easy to install in automation setups
- RoHS compliant and suitable for industrial and defense-grade systems
- Transfer cars and conveyors
- Packaging and textile machinery
- Missile launcher platforms
- Rail and crane buffers
- Surface transport systems
- Compact automation modules
