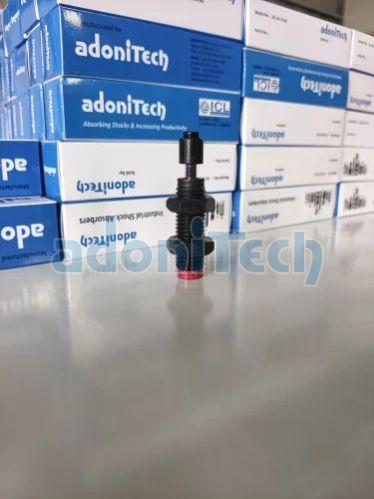

AC1607C Industrial Shock Absorber



🛠️ Fixed Hydraulic Shock Absorber – Model AC-16 07-A

The AC-167-A is a compact, high-precision fixed hydraulic shock absorber engineered for pad printing systems and light-duty automation. Designed for consistent energy absorption and minimal rebound, it features a Black Arkor-treated body, hardened stainless steel piston rod, and multiple rod-end configurations to suit diverse mounting needs.

⚙️ Technical Specifications ParameterValue

Stroke Length	20 mm
Max. Energy per Cycle	25 Nm
Max. Energy per Hour	45,000 Nm/h
Effective Mass Range	3 – 25 kg
Thread Size	M16 × 1.5
Body Material	Hardened steel with Black Arkor finish
Rod Material	Hardened stainless steel
Return Mechanism	Internal spring
Operating Temperature	–5°C to +70°C
Service Life	Up to 1 million cycles
Stock Status	Best seller – available ex-stock

🧩 Rod-End Options

• No Cap – for ultra-compact installations
• Metallic Cap – for rugged impact zones
• Metallic + PU Cap – for noise reduction and soft rebound
• Side Load Adapter – available for misaligned impact angles

✅ Features

• Fixed damping with multi-orifice internal design
• Black Arkor finish for enhanced corrosion resistance
• Rod-end modularity for application-specific customization
• Compact and easy to install in pad printing and automation setups
• RoHS compliant and suitable for cleanroom or precision environments

🏭 Applications

• Pad printing machines
• Small pneumatic actuators
• Linear slides and pick-and-place systems
• Packaging and labeling equipment
• Electronics and medical device automation
