Hydraulic, Pneumatic & Spring Buffer Solutions

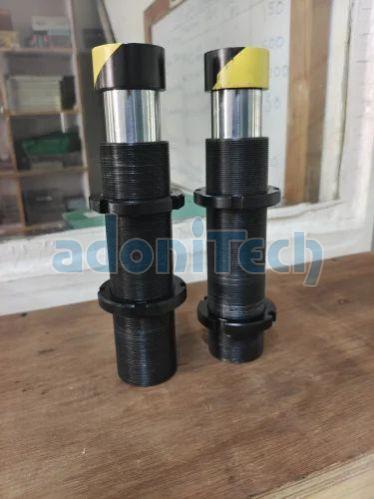

A buffer spring with a 12-tonne (12,000 kg) capacity is a mechanical energy-absorbing device used in elevator systems (and also cranes, rail systems, etc.) to cushion impacts. In the context of elevators, it's typically installed in the pit as an alternative to hydraulic buffers, especially in low-speed elevators or freight lifts.

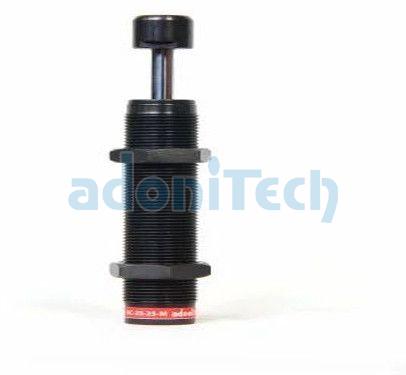

FIXED HARDNESS

THREADING M 25 X 1.5

STROKE 40MM

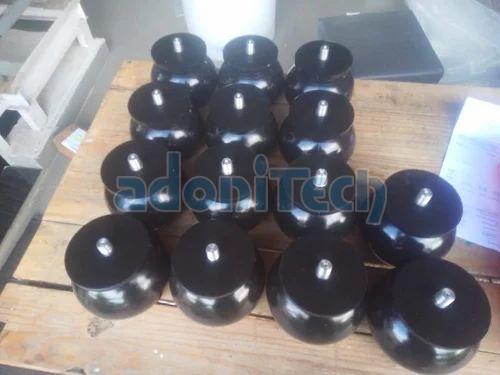

Polyureathane Buffer for Crane Duty
Impact Solution
Mantainance Free.
Low Noise.
Heavy Shock Absorbers



🛠️ Hydraulic Buffer – Model EI 80 × 100 / AKHG 80-100

The EI 80 × 100 hydraulic buffer is a medium-duty energy absorption device designed for overhead cranes, transfer cars, and industrial safety systems. Featuring a Yellow epoxy-coated body, Arkor-finished hardened chrome-plated piston rod, and a PU stroker cap, it ensures long-term corrosion resistance and consistent damping performance in harsh environments.

⚙️ Technical Specifications ParameterValue

Stroke Length	100 mm
Max. Energy per Cycle	15.6 kJ
Max. Buffer Force	160 kN
Return Mechanism	Nitrogen gas
Filling Medium	Oil + Nitrogen gas
Rod Finish	Hardened chrome plated with Arkor coating
Body Finish	Yellow epoxy paint
Cap Material	Polyurethane (PU)
Mounting Options	Front flange (FF), Rear flange (FR), or custom
Weight	~22 kg
Operating Temperature	–10°C to +80°C (Standard), –35°C to +100°C (Optional)

✅ Features

• Self-adjusting damping for consistent deceleration across variable impact speeds
• Multi-orifice design tailored to application-specific energy profiles
• Arkor rod finish for enhanced corrosion resistance in coastal or chemical environments
• PU stroker cap for quiet operation and smooth reset
• Compact and rugged construction for space-constrained installations
• Global compliance: OSHA, AISE, CMMA, DIN, FEM standards

🏭 Applications

• Overhead and gantry cranes
• Transfer cars and rail systems
• Steel plant safety zones
• Amusement rides
• Defense-grade mobile platforms
• Port and container handling systems

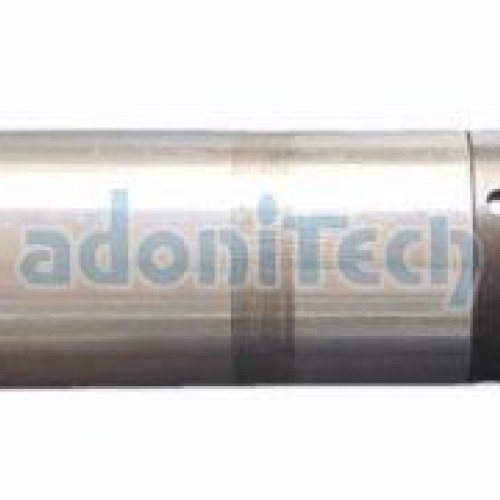

The Hydraulic Buffer EI 50 150 CMB appears to correspond to the CMB-50-150 model from Dayton Lamina's Accu-Bend Compact Bender series. This unit is designed for precision bending applications in industrial settings.

🔧 Key Specifications

• Brand: Lamina

• Model: CMB-50-150

• Bender Type: Accu-Bend Compact

• Bender Length: 150 mm (5.91 inches)

• Front Saddle Width (B): 35 mm (1.38 inches)

HYDRAULIC ACTION

ENERGY CAPACITY 3000 NM

STROKE 50

THREADING FOR ADJUSTING ONOUTSIDE M 50 X 1.5



ifference sizes

Spring Actuated

Hydtaulic Buffer with NItrogen Return

Stroke 100 mm

Size 65/50

Bellows included

Energy Capacity 6900 NM

Air Operated

Fast clamping

Calmping for ce 630 N at 5 Bat and 1008 N at 10 Bar

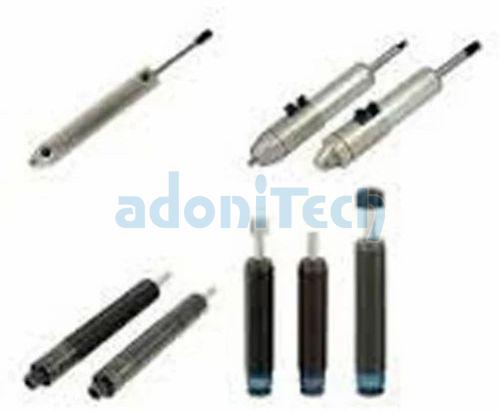

A recent increase in demand for automation in drilling has evolved in to new products. The actuation being mostly pneumatic the feed rate is controlled by Hydraulic feed rate controllers. The required thrust is generated by controlling the size of a orifice by adjusting a knob in about 300 degrees of rotation from minimum resistance to the maximum resistance offered. The adjustment is infinitely variable over the complete damping range and a fine tuning can be done with the help of graduations provided on the speed controller.

Drilling equipment with pneumatic feeds, screw feeds and are the potential applications of the Hydraulic speed controllers.

Generally the feed rates achieved are 12 - to 40 meters /minute .In special cases 0.015 to15 meters/min can be achieved by some special provisions and changes in the resistance mechanism. A return stroke is achieved by the virtue of a inbuilt spring and opening of a non return valve. AdoniTech also offers reconditioning services to imported speed controllers. For food or glass industries these are available in stainless steels. If required threading is also provided on the outer body to suit positioning in threaded holes or fixtures. These Hydro speed regulators are available ex-stock at an affordable price.



• A recent increase in demand for automation in drilling has evolved in to new products. The actuation being mostly pneumatic the feed rate is controlled by Hydraulic feed rate controllers. The required thrust is generated by controlling the size of a orifice by adjusting a knob in about 300 degrees of rotation from minimum resistance to the maximum resistance offered. The adjustment is infinitely variable over the complete damping range and a fine tuning can be done with the help of graduations provided on the speed controller.


• Drilling equipment with pneumatic feeds, screw feeds and are the potential applications of the Hydraulic speed controllers.


• Generally the feed rates achieved are 12 - to 40 meters /minute .In special cases 0.015 to15 meters/min can be achieved by some special provisions and changes in the resistance mechanism. A return stroke is achieved by the virtue of a inbuilt spring and opening of a non return valve. AdoniTech also offers reconditioning services to imported speed controllers. For food or glass industries these are available in stainless steels. If required threading is also provided on the outer body to suit positioning in threaded holes or fixtures. These Hydro speed regulators are available ex-stock at an affordable price.
