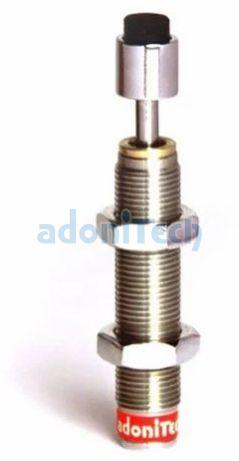

AC1412M Mini Series Industrial Shock Absorber



🛠️ Fixed Hydraulic Shock Absorber – Model AC-14-12-M

The AC-14-12-M is a compact, precision-engineered fixed hydraulic shock absorber designed for light-duty industrial applications, including food processing machinery. With a Black Arkor-treated body for corrosion resistance and an optional stainless steel version for hygienic environments, it offers reliable energy absorption and long service life.

⚙️ Technical Specifications ParameterValue

Stroke Length	12 mm
Max. Energy per Cycle	15 Nm
Thread Size	M14 × 1.5
Body Material	Mild steel with Black Arkor finish (default) or Stainless Steel (optional)
Rod Material	Hardened stainless steel
Return Mechanism	Internal spring
Operating Temperature	–5°C to +70°C
Service Life	Up to 1 million cycles
Stock Status	Best seller – available ex-stock

🧩 Rod-End Options

• No Cap – for ultra-compact installations
• Metallic Cap – for rugged impact zones
• Metallic + PU Cap – for noise reduction and soft rebound
• Side Load Adapter – available for misaligned impact angles

✅ Features

• Fixed damping with internal multi-orifice design
• Black Arkor finish for enhanced corrosion resistance in industrial settings
• Stainless steel body option for food-grade and hygienic environments
• Rod-end modularity for application-specific customization
• Compact and easy to install in automation setups
• RoHS compliant and suitable for cleanroom or food processing zones

🏭 Applications

• Food packaging and filling machines
• Pad printing and labeling systems
• Small pneumatic actuators
• Electronics and medical device automation
• Compact industrial automation modules
