Crane Spare Parts

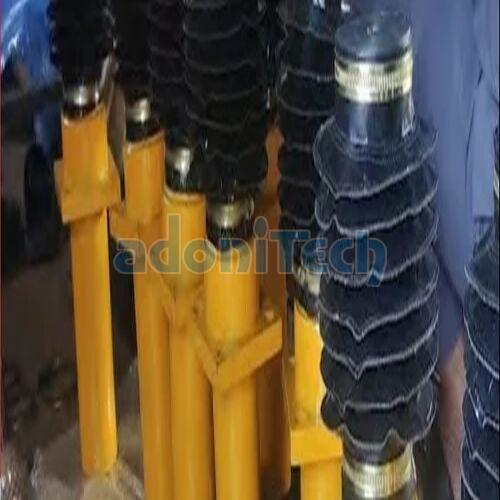

Leading Manufacturers, Exporters and Wholesaler of AKHG6525 EOT Crane Hydraulic Shock Absorbers, AKHG6550 EOT Crane Hydraulic Shock Absorbers and AKHG6575 EOT Crane Hydraulic Shock Absorbers from Satara.

15,500.00 / Piece( + 18% GST applicable)

2 Piece (MOQ)

Get Best Price
Business Type Manufacturer, Exporter, Supplier
Color Yellow
Application Overhead Cranes
Type Crane Rail
Material Mild Steel
Brand Name ADONI TECH
Spring Material NITROGEN RETUN
Stroke(mm) 25
Energy Capacity Per stroke(NM 2000
Product Code AKHG65-25
Payment Terms T/T

Click to view more

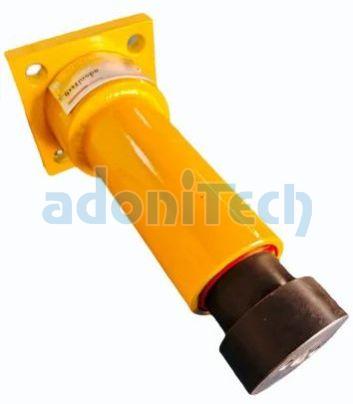

🛠️ Hydraulic Buffer – Model AKHG65-25

The AKHG65-25 hydraulic buffer from KOBA is a compact, high-efficiency energy absorption device designed for industrial applications requiring short stroke deceleration. As part of the AKHG Series, it offers precision damping and robust construction, ideal for space-constrained environments.

🔧 Technical Specifications
  • Stroke Length: 25 mm
  • Maximum Energy per Cycle: 2 kJ
  • Maximum Buffer Force: 100 kN
  • Recoil Force: ~1.0 kN
  • Weight: ~3.2–3.5 kg
  • Operating Temperature:
    • Standard: –10°C to +80°C
    • Special: –40°C to +120°C
  • Return Mechanism: Nitrogen gas
  • Filling Medium: Oil + Nitrogen gas
  • Piston Rod: Hard chrome plated (≥25 µm)
  • Body Coating: Epoxy paint
  • Mounting Options: Rear flange (RS), front flange (FS), or custom
🏗️ Applications
  • Transfer cars
  • Overhead cranes
  • Rail systems
  • Steel plant equipment
  • Amusement rides
  • Emergency stop systems
✅ Features
  • Self-adjusting damping for consistent performance
  • Multiple orifice design tailored to application needs
  • Compact footprint for tight installations
  •
Read More...


Request to Call


16,800.00 / Piece( + 18% GST applicable)

10 Piece (MOQ)

Get Best Price
Business Type Manufacturer, Exporter, Supplier
Application Overhead Cranes
Type Crane Rail
Material Metal, Cast Iron
Brand Name ADONI TECH
Shape Round
Color YELLOW
Energy Capacity Per stroke 4000 NM
Stroke 50MM
RETURN PRESSURE 10 BAR MIN
Product Code AKHG6550
Port MUBAI
Payment Terms T/T

Click to view more

 🛠️ Hydraulic Buffer – Model AKHG65-50

The AKHG65-50 hydraulic buffer is a compact, high-performance energy absorption device designed for industrial and heavy-duty applications. Engineered by KOBA, it features a self-adjusting damping system, hard chrome-plated piston rod, and epoxy-coated body, ensuring reliable performance across demanding environments.

⚙️ Technical Specifications ParameterValue
Stroke Length 50 mm
Max. Energy per Cycle 4 kJ
Max. Buffer Force 100 kN
Return Mechanism Nitrogen gas
Filling Medium Oil + Nitrogen gas
Operating Temperature –10°C to +80°C (Standard), –40°C to +120°C (Special)
Piston Rod Hard chrome plated (≥25 µm)
Body Finish Epoxy paint coating
Mounting Options Rear flange (RS), front flange (FS), clevis, or custom
Weight ~3.5–4.7 kg
✅ Features
  • Self-adjusting damping for consistent deceleration across variable impact speeds
  • Multiple orifice design tailored to application-specific energy profiles
  • Compact and rugged construction for space-constrained installations
  • Corrosion-resistant epoxy finish for long-term durability
  • Global compliance: OSHA, AISE, CMMA, DIN, FEM standards
🏭 Applications
  • Container cranes
  • Overhead and stacker cranes
  • Transfer cars
  • Rail systems
  • Steel plant safety zones
  • Amusement rides
  • Defense-grade mobile platforms
Read More...


Request to Call


Business Type Manufacturer, Exporter, Supplier
Color Yellow
Feature Easy To Fit, Good Quality
Material Cast Iron
Type Crane Rail
Application Overhead Cranes
Stroke 75mm
Energy Capacity Per stroke 6000 NM
Product Code AKHG65-75
Port MUMBAI
Payment Terms T/T

Click to view more



🛠️ Hydraulic Buffer – Model AKHG65-75

The AKHG65-75 hydraulic buffer from   is a high-performance energy absorption device engineered for demanding industrial applications. It is part of the AKHG Series, known for its robust design, self-adjusting damping, and compliance with global safety standards.

🔧 Technical Specifications
  • Stroke Length: 75 mm
  • Maximum Energy per Cycle: 6 kJ
  • Maximum Buffer Force: 100 kN
  • Operating Temperature:
    • Standard: –10°C to +80°C
    • Special: –40°C to +120°C
  • Return Mechanism: Nitrogen gas
  • Filling Medium: Oil + Nitrogen gas
  • Piston Rod: Hard chrome plated (≥25 µm)
  • Body Coating: Epoxy paint
  • Mounting Options: Rear flange, front flange, clevis, or custom configurations
🏗️ Applications

Ideal for:

  • Container cranes
  • Overhead and stacker cranes
  • Transfer cars
  • Railway systems
  • Amusement rides
  • Steel plant safety systems
✅ Features
  • Self-adjusting damping for consistent performance
  • Multiple orifice design tailored to application needs
  • Compact and rugged construction for harsh environments
  • Global compliance: OSHA, AISE, CMMA, DIN, FEM standards
