AC1412H Industrial Shock Absorbers

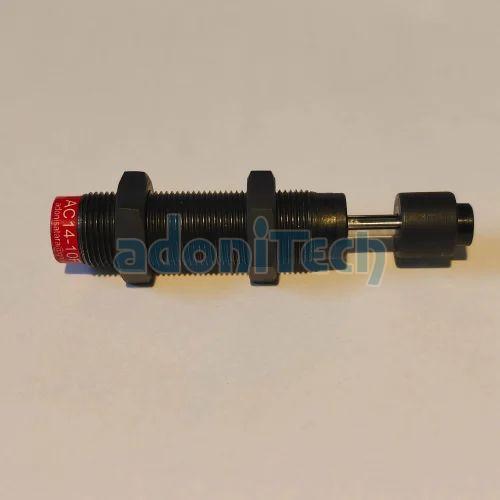

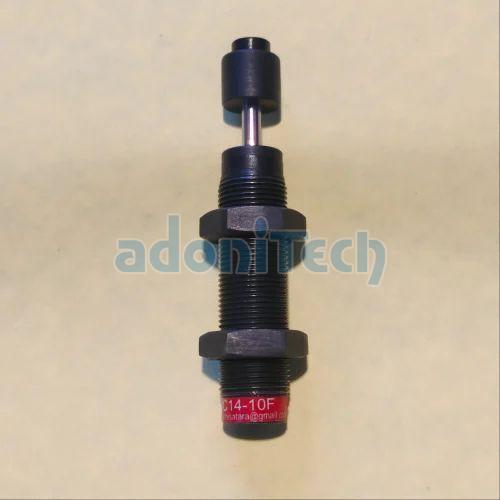

 🛠️ Fixed Hydraulic Shock Absorber – Model AC-14-12-H

The AC-14-12-H is a compact, high-hardness fixed hydraulic shock absorber designed for emergency damping in industrial automation and defense-grade systems. Featuring a Black Arkor-treated body, hardened stainless steel piston rod, and high-speed damping characteristics, it is a fast-moving product trusted for critical impact protection.

⚙️ Technical Specifications ParameterValue

Stroke Length	12 mm
Max. Energy per Cycle	15 Nm
Max. Energy per Minute	600 Nm/min
Effective Mass Range	Up to 100 kg
Max. Collision Velocity	3.5 m/s
Thread Size	M14 × 1.5
Body Material	Mild steel with Black Arkor finish
Rod Material	Hardened stainless steel
Return Mechanism	Internal spring
Operating Temperature	–5°C to +70°C
Service Life	Up to 800,000 cycles
Stock Status	Best seller – available ex-stock

✅ Features

• Fixed damping with high-speed response for emergency stop applications
• Black Arkor finish for superior corrosion resistance and industrial-grade durability
• High-hardness construction for repeated impact absorption
• Compact design for space-constrained installations
• RoHS compliant and suitable for automation, defense, and surface transport systems

🏭 Applications

• Emergency stop zones in automation lines
• Missile launcher platforms
• Surface transport buffers
• Compact robotic arms
• Packaging and printing machines
• Defense-grade mobile equipment
