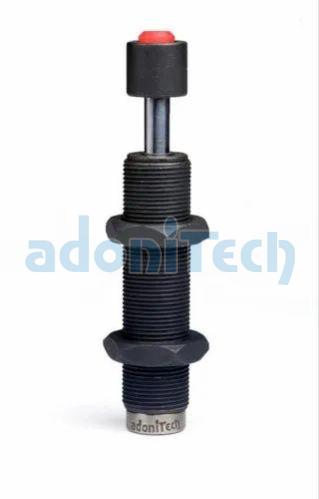

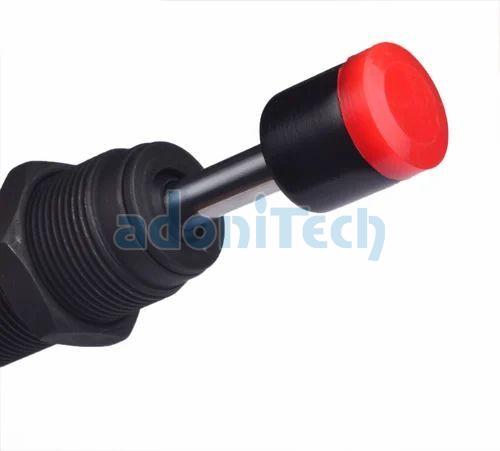

AD1613F Industrial Shock Absorber

The AD1613F industrial shock absorber is part of the AD Series of adjustable hydraulic dampers, designed for medium-duty applications requiring precise energy absorption and deceleration control. While specific details for the AD1613F model are not readily available, we can infer its characteristics based on the AD Series specifications.

🔧 Key Specifications (Based on AD Series)

• Model: AD1613F

• Stroke Length: Approximately 13 mm

• Thread Size: Likely M16 x 1.5

• Maximum Absorbed Energy per Cycle: Approximately 22 Nm

• Maximum Energy Absorption per Hour: Around 27,500 Nm/h

• Maximum Effective Mass: Approximately 130 kg

• Maximum Impact Speed: Up to 3.0 m/s

• Operating Temperature Range: -10°C to +80°C

• Body Material: Typically constructed from high-strength materials with surface treatments for enhanced durability

• Weight: Approximately 230 g
