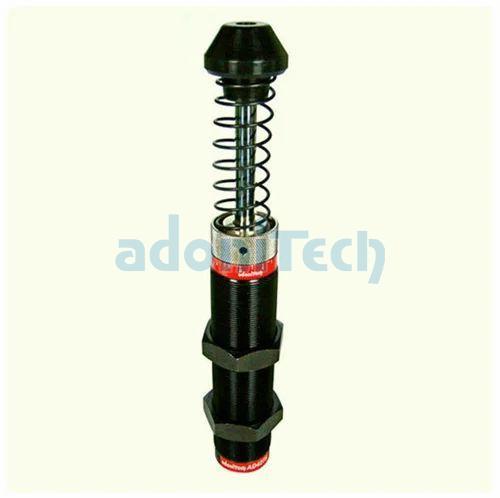

AD3650M Industrial Shock Absorbers

Link Copied
6,100.00 / Piece( + 18% GST applicable)

2 Piece (MOQ)

Business Type Manufacturer, Exporter, Supplier
Brand Name Adoni Tech
Dimension 30-40mm, M 36 X 1.5
Application Industrial
Click to view more

Product Details

Material
Metal, Mild Steel
Spring Material
EN47
Shape
Round
Color
Black
Condition
New
Corrosion Resistant
Yes
Spring Force Min
45 N
Spring Force Max
80 N
Effective Mass Min
10 Kg
Absorbation
97,000 Nm/h
Effective Mass Mix
2700 Kg
Product Code
AD 36-50 M
Payment Terms
D/A, D/P, T/T, Western Union, Other



🛠️ Adjustable Shock Absorber – Model AD-3650-M

The AD-3650-M is a robust, high-performance adjustable hydraulic shock absorber designed for medium-to-heavy industrial applications. Featuring a Black Arkor-treated body, external spring return, and bottom-end adjustment, it delivers precise energy absorption and long service life in demanding environments.

⚙️ Technical Specifications ParameterValue
Stroke Length 50 mm
Max. Absorbed Energy (per cycle) 300 Nm
Max. Absorbed Energy (per minute) 1800 Nm/min
Effective Mass Range Up to 1450 kg
Max. Impact Speed 3.5 m/s
Thread Size M36 × 1.5
Body Material Hardened steel with Black Arkor finish
Rod Material Hardened chrome-plated stainless steel
Return Mechanism External spring
Adjustment Location Bottom-end rotary knob
Operating Temperature –5°C to +70°C
Service Life Up to 800,000 cycles
Weight ~1100 g
Stock Status Best seller – available ex-stock
✅ Features
  • Bottom-end adjustment for easy access in mounted configurations
  • External spring return for rapid piston reset and simplified maintenance
  • Black Arkor finish for enhanced corrosion resistance and industrial-grade aesthetics
  • Hardened chrome-plated rod ensures durability under repeated impact
  • Compact full-threaded body for flexible mounting and heat dissipation
  • RoHS compliant and suitable for automation, robotics, and defense-grade systems
🏭 Applications
  • Automation lines
  • Robotic arms
  • Missile launcher platforms
  • Transfer cars and conveyors
  • Circuit breakers and turnstiles
  • Pneumatic and hydraulic linear motion systems
