AD3350M Medium Series Industrial Shock Absorber

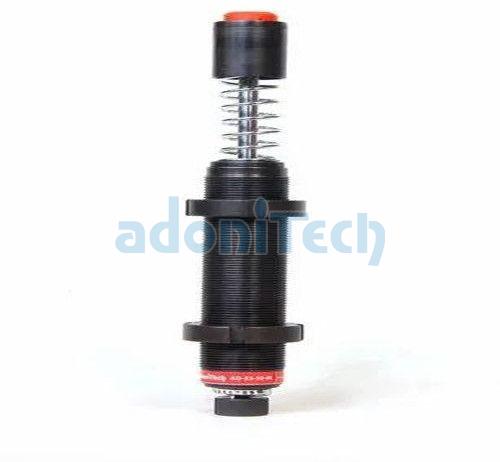

🛠️ Adjustable Shock Absorber – Model AD-33-50-M

The AD-33-50-M is a medium-duty adjustable hydraulic shock absorber designed for industrial applications requiring precise energy absorption and compact form factor. Featuring a Black Arkor finish, hardened chrome-plated piston rod, and a PU stroker cap, this model offers bottom-end damping adjustment and spring return for consistent performance across variable loads.

⚙️ Technical Specifications ParameterValue

Stroke Length	50 mm
Max. Absorbed Energy (per cycle)	385 Nm
Max. Absorbed Energy (per hour)	98,962 Nm/h
Effective Mass Range	1,400 – 2,400 kg
Max. Impact Speed	3.3 m/s
Thread Size	M33 × 1.5
Body Material	Hardened steel with Black Arkor finish
Rod Material	Hardened chrome-plated steel
Return Mechanism	Spring return
Adjustment Location	Bottom-end rotary knob
Cap Material	Polyurethane (PU)
Operating Temperature	–10°C to +80°C
Service Life	Up to 800,000 cycles

✅ Features

• Bottom-end adjustment for easy access in mounted configurations
• Multi-orifice damping for optimized energy dissipation
• PU stroker cap for quiet operation and smooth reset
• Black Arkor finish for corrosion resistance and industrial-grade aesthetics
• Spring return mechanism ensures rapid piston recovery
• RoHS compliant and suitable for rugged environments

🏭 Applications

• Conveyor impact zones
• Transfer cars
• Defense-grade mobile systems
• Rail and crane buffers
• Heavy-duty automation setups
• Missile and launcher platforms
