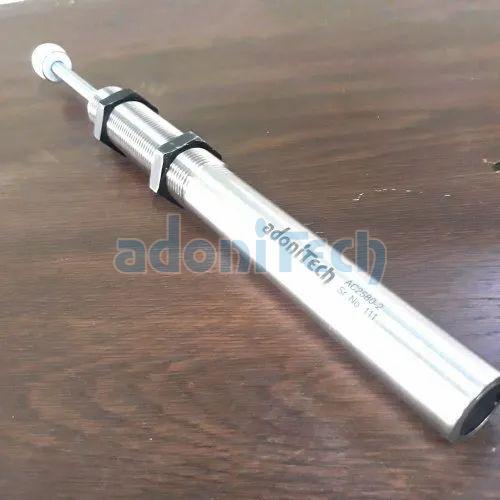

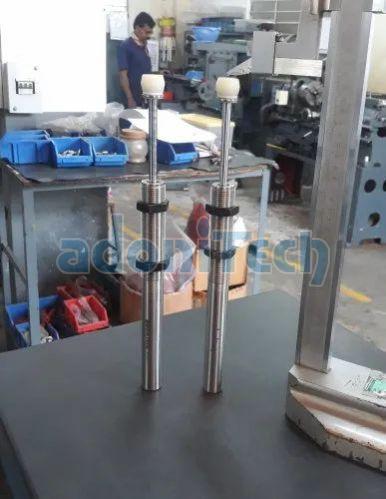

 🛠️ Adjustable Shock Absorber – Model AC-25-80-M (Stainless Steel Version)

The AC-25-80-M is a long-stroke, high-performance adjustable hydraulic shock absorber designed for demanding industrial and hygienic environments. Engineered with a stainless steel body, hardened stainless steel piston rod, and precision damping control, it delivers exceptional performance and extended service life in food-grade machinery and automation systems.

⚙️ Technical Specifications ParameterValue

Stroke Length	80 mm
Max. Energy per Cycle	120 Nm
Max. Energy per Hour	180,000 Nm/h
Effective Mass Range	1,000 – 2,500 kg
Max. Impact Speed	3.5 m/s
Thread Size	M25 × 1.5
Body Material	Stainless Steel (Grade 304/316)
Rod Material	Hardened stainless steel, chrome plated
Return Mechanism	Internal spring
Adjustment Location	Bottom-end rotary knob
Operating Temperature	–5°C to +70°C
Service Life	Up to 1 million cycles
Finish	Food-grade polish or optional Black Arkor (for non-food use)
Stock Status	Fast-moving item – available ex-stock

✅ Features

• Long stroke for smoother deceleration and higher energy absorption
• Stainless steel construction for corrosion resistance and hygienic compliance
• Bottom-end adjustment for easy access in mounted configurations
• Hardened chrome-plated rod ensures durability under repeated impact
• RoHS compliant and suitable for cleanroom, pharma, and food-grade systems
• Modular rod-end options available for PU cap, metallic cap, or no cap

🏭 Applications

• Food packaging and filling machines
• Pharmaceutical automation systems
• Cleanroom conveyors and actuators
• High-speed labeling and sorting equipment
• Defense-grade mobile platforms (non-SS version)
